drawing surface plots on the IR³ simplex
Posted in pictures, R, Statistics, University life with tags Bayesian inference, image(), posterior distribution, R, simplex, surface, terrain.colors() on October 18, 2013 by xi'an
As a result of a corridor conversation in Warwick, I started looking at distributions on the IR³ simplex,

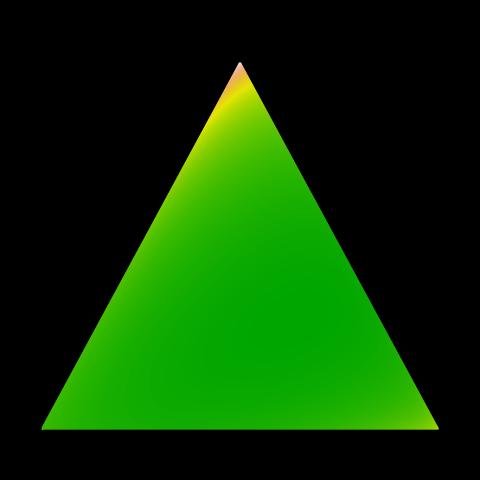

and wanted to plot the density in a nice way. As I could not find a proper package on CRAN, the closer being the BMAmevt (for Bayesian Model Averaging for Multivariate Extremes) R package developed by a former TSI Master student, Anne Sabourin, I ended up programming the thing myself. And producing the picture above. Here is the code, for all it is worth:
[sourcecode language=”r” gutter=”false”]
# setting the limits
par(mar=c(0,0,0,0),bg="black")
plot(c(0,1),col="white",axes=F,xlab="",ylab="",
xlim=c(-1,1)*1.1/sqrt(2),ylim=c(-.1,sqrt(3/2))*1.1)
# density on a grid with NAs outside, as in image()
gride=matrix(NA,ncol=520,nrow=520)
ww3=ww2=seq(.01,.99,le=520)
for (i in 1:520){
cur=ww2[i];op=1-cur
for (j in 1:(521-i))
gride[i,j]=mydensity(c(cur,ww3[j],op-ww3[j]))
}
# preparing the graph
subset=(1:length(gride))[!is.na(gride)]
logride=log(gride[subset])
grida=(logride-min(logride))/diff(range(logride))
grolor=terrain.colors(250)[1+trunc(as.vector(grida)*250)]
iis=(subset%%520)+520*(subset==520)
jis=(subset%/%520)+1
# plotting the value of the (log-)density
# at each point of the grid
points(x=(ww3[jis]-ww2[iis])/sqrt(2),
y=(1-ww3[jis]-ww2[iis])/sqrt(2/3),
pch=20,col=grolor,cex=.3)
[/sourcecode]
